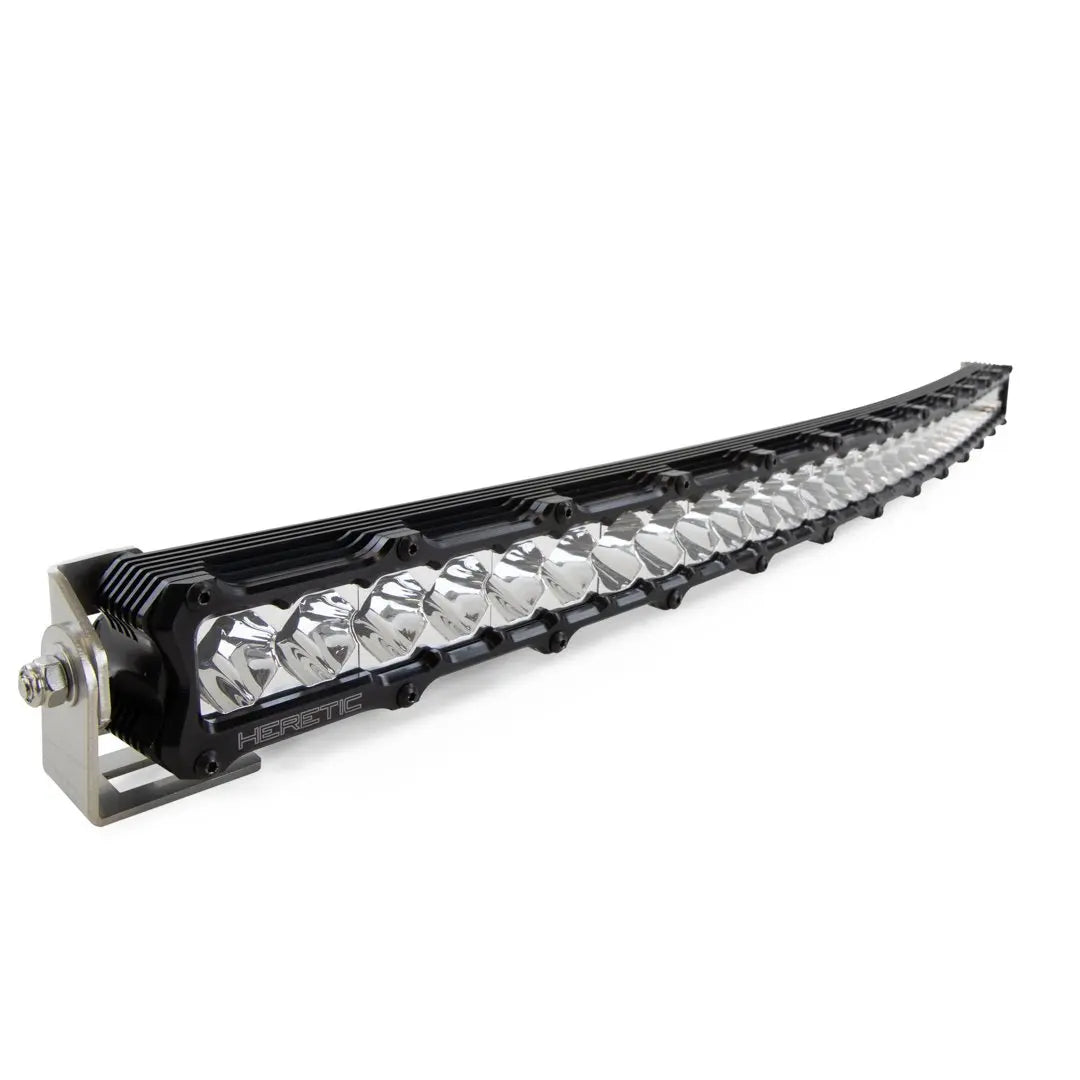

Heretic 30" Curved LED Light Bar

Overview

The Heretic 30" Curved LED light bar is the biggest bang for your buck when it comes to LED light bars. These high performance 6-series curved clear LED light bars are designed and manufactured in the USA, housed in CNC machined aircraft-grade aluminum, and outfitted with best-in-class circuit boards that allow temperature control and long-lasting light. The 30” Curved LED light bar is recommended for forward-facing applications in aftermarket roof racks, UTV roll cages, and behind the grille of trucks and SUVs. It is specifically designed to align with the curve of your vehicle or UTV and requires an aftermarket mount. This light bar is best for visibility on clear night conditions.

Features

• USA Patented 6061 CNC Aluminum Grade Billet Housing
• (30) 6-watt CREE LED
• IP68 rated Stainless Steel Mounts
• Designed, Manufactured, Assembled, Supported, and Shipped in Centerville,Utah
• Customize Your Beam Pattern: Combo, Spot, or Flood
• Customize Your Bezel - Contact Heretic Studio

Parts Sold Separately

• Wiring Harness
• Aftermarket Mount for Roof Rack Attachment
• Amber Lens Attachment



Details/Specs

Shipping Weight: 5lbs
Type: 30” LED Light Bar
Housing: CNC Aircraft-Grade Aluminum
Location: Roof, Bumper, Grille, Rack
Light Color: White
Lens Color: Clear
Wattage: 180W
Amp Draw at 13.8V: 17.9A
Voltage: 9V-36V
IP Rating: IP68
DIM (Light Only): L 31” x D 1.5” x H 2”
DIM (Light W/ Bracket): L 32” x D 1.5” x H “2.4
Lumens: 21780 lm
Lux At 10m:

• Spot: 6188 lx
• Flood: 1316 lx
• Combo: 4239 lx

Candela:

• Spot: 618750 cd
• Flood: 131625 cd
• Combo: 423900 cd

Beam Distance:

• Spot: 1573 m
• Flood: 726 m
• Combo: 1302 m

DOT Compliant: No
Prop 65: No
SAE/ECE: No

Vehicle Application

Typically forward-facing placement for UTV roll cages. Can be used on factory truck bumpers as well to match the curve of the vehicle. Amber lens for dusty and foggy conditions. Requires aftermarket mount.
